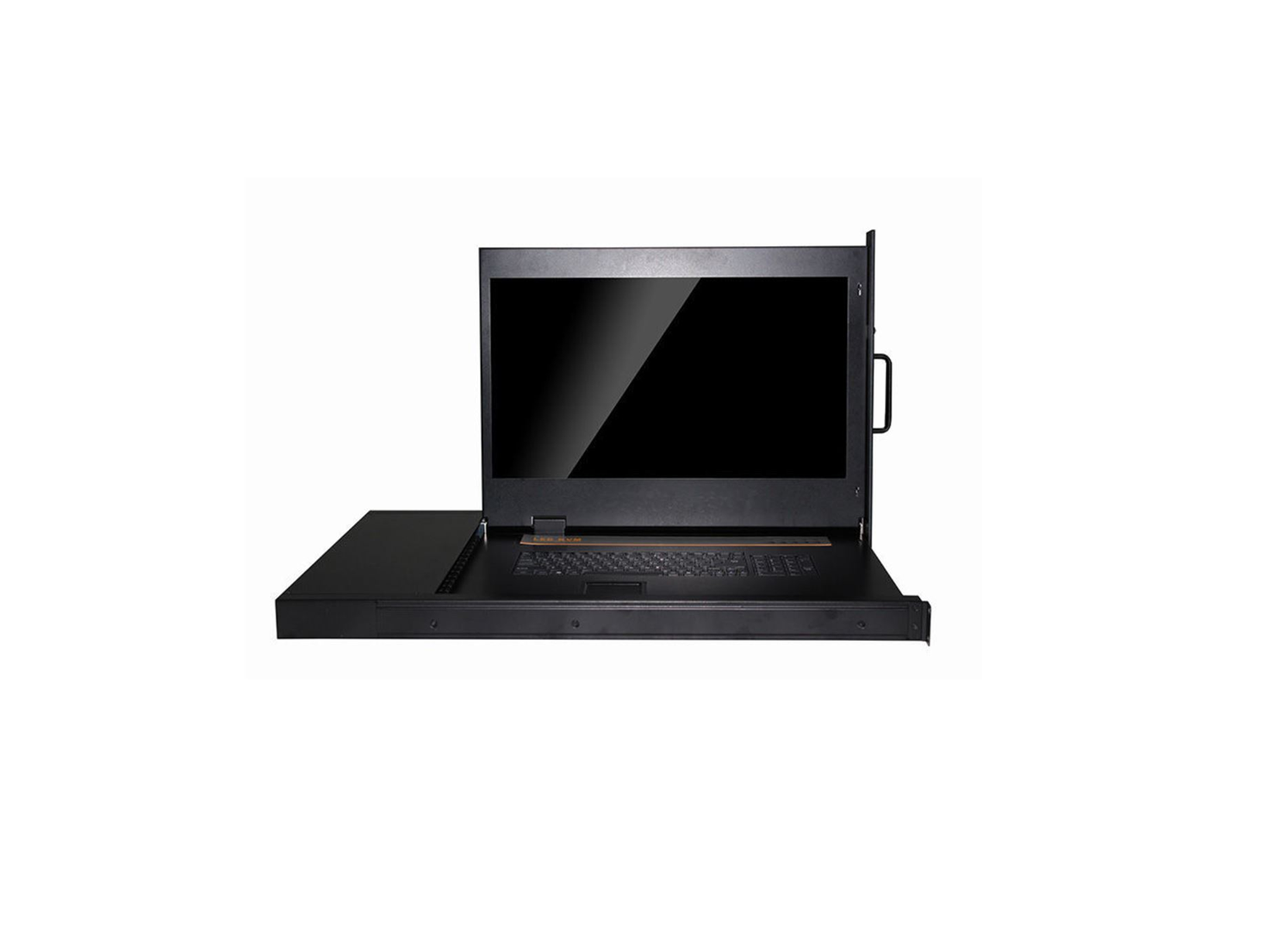

1U rack mount 18.5″ LED KVM switch 16 ports HDB-15 with touch pad+Mouse – AL-V18516P

• Angustos AL-V18516P LCD KVM Console Drawer is optimized for high density Rack in modern Data Center.
• Integrating a 18.5” LED screen, keyboard and mouse pad in a 1U rackmountable sliding housing. The compact design console is ultilized for extreme narrow space and super densed area. The AL-V18516P can be installed and connected with Angustos KVM Switch or other brand KVM for convenience configuration. The AL-V18516P can control up to 16 computers; with 16 additional KVM switches are cascaded, a single AL-V18516P LCD KVM Switch can control up to 512 computers.
• In addition, the AL-V18516P included an additional hot-pluggable USB port that supports other keyboard and mouse for back-up. With all of the technology involved, the AL-V18516P LCD KVM Console has gone beyond the expectations and requirements for a modern Data Center use, which including : short space optimization, exceptional display quality, easy to install, extreme versatility.

High Density Utilization

• Front USB for back up mouse-keyboard.

• LCD KVM console with an 17.3” LED-backlit 16:9 LCD monitor in a single rail design.

• Extreme refresh rate up to 75Hz.

• Short-depth overall size allowing user to work with in condensed space of high density Rack

• 104 keys mechanical keyboard with integrated Digital & E-switch keys.

• Certificate : CE , FCC , RoHS

Flexible compatibility

• Superior video quality – up to 1920 x 1080 @75Hz; DDC2B.

• Compatible with Angustos and other brands KVM Switches Over IP support remote via internet.

• Cascade up to 256 computers from a single console (With compatible KVM Switches).

• Auto PS/2 and USB interface sensing.

• Keyboard and mouse emulation (PS/2 and USB) for seamless switching.

• Operates with all software and operating systems including all Windows versions, DOS, Linux, Unix, BSD, all Sun OS, all Mac OS and NetWare.

• Keyboard Language supports: English (UK), English (US), German (GER.) Japanese, Korean, Russian, Swedish, Chinese.

Installation Flexibility

• Standard rack mount kit included

• No software required – Plug and Play

• Supports hot-plugging
